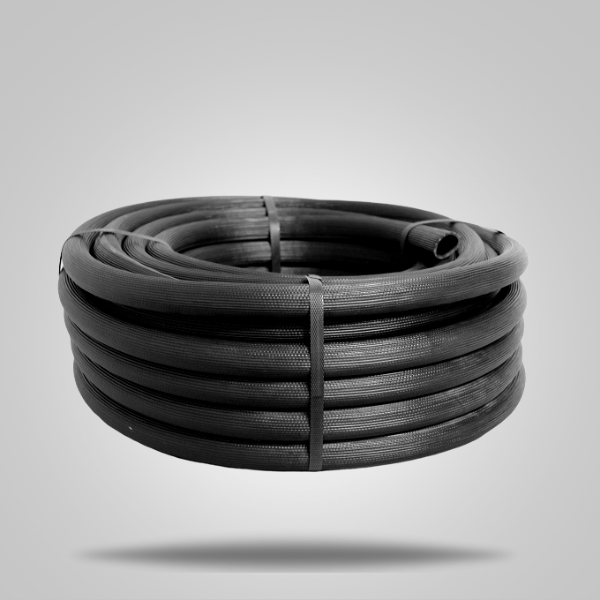

Dragline hose
Flexible Polyvinyl chloride (PVC) reinforced pressure hose.
This product is manufactured for use in irrigation in the farming industry for conveying water.
The Dragline pressure hose is manufactured with two layers, reinforced with polyester over the inner layer. It also has longitudinal polyester reinforcement to limit stretching over long distances.
| TECHNICAL DATA | NOMINAL ID | ||
| DESCRIPTION | 20 mm | 25 mm | |
| Internal Diameter | 20mm | 25 mm | |
| Outer Diameter | 25 mm | 31 mm | |
| Burst Pressure | 6000kpa | 5600kpa | |
| Work Pressure | 1500kpa | 1400kpa | |
Coil lengths available: 30m, 50m & 100m
The outer layer is fluted to withstand vigorous farming condition, making it hard-wearing and thereby increasing its lifespan.
Cut & Abrasion Resistant
UV Resistant
Withstand temperatures from from 0°C to 60°c.
SURFACE MARKING
The hose is marked with our company name and the manufacturing date.
Please note that all information provided here has been determined through relevant testing, conducted in our own laboratory in accordance with standard testing procedures, and is believed to be reliable. Our product is guaranteed against defects in manufacturing or workmanship, provided it is used for its intended purpose.
